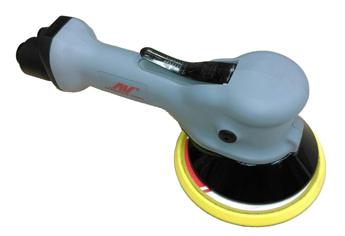

6 in. (152 mm) TwoHANDTM Series

6 in. (152 mm) TwoHANDTM Series
SPECIFICATION SHEET

Features:

* Ergonomic grip with overmold.

* Side handle for added comfort and control.

* Biased balanced shaft balancers. Balanced with an average weight abrasive and pad.

* With the air still connected to the tool, the tool can be placed upside down on your work (pad facing upwards).

* This feature is not to be used for changing the pad.

* This feature is to be used when the user steps away from the work.

* Externally mounted hook to hang the tool on the wall.

* There are common parts between the palm sander and the TwoHANDTM tools.



6 in. (152 mm) TwoHANDTM Random Orbital Sander Tool Selector

Standard Product Configuration Table: TwoHANDTM Random Orbital Sander - 12,000 RPM

Note: All Vacuum machines use Ø 1 in. Vacuum Hose Fittings Standard.

All Random Orbital Sanders listed below come standard with shrouds and all use pads with 5/16-24 male studs. Skirts are available separately.

Pad
Face

Vac Type

Pad Type

Pad Part
Number

3/32 in.
(2.5mm) orbit-
Model No.

3/16 in.
(5mm) orbit-
Model No.

3/8 in.
(10mm) orbit-
Model No.

Vinyl for
PSA
mounted
abrasives

Non-Vac

6 in. (152mm) diameter Low Profile

1260100

062100

062300

062500

6 in. (152mm) diameter Tapered Edge

1260300

062101

062301

062501

Central
Vac

6 in. (152mm) diameter Low Profile

1260110

062131

062331

062531

6 in. (152mm) diameter Tapered Edge

1260310

062132

062332

062532

Self-Gen
Vac

6 in. (152mm) diameter Low Profile

1260110

062161

062361

062561

6 in. (152mm) diameter Tapered Edge

1260310

062162

062362

062562

Hook for loop
mounted
abrasives

Non-Vac

6 in. (152mm) diameter Low Profile

1260101

062102

062302

062502

6 in. (152mm) diameter Tapered Edge

1260301

062103

062303

062503

Central
Vac

6 in. (152mm) diameter Low Profile

1260111

062133

062333

062533

6 in. (152mm) diameter Tapered Edge

1260311

062134

062334

062534

6 in. (152mm) diameter LP screen abrasive

1260142

062135

062335

062535

Self-Gen
Vac

6 in. (152mm) diameter Low Profile

1260111

062163

062363

062563

6 in. (152mm) diameter Tapered Edge

1260311

062164

062364

062564

6 in. (152mm) diameter LP screen abrasive

1260142

062165

062365

062565

These machines are especially designed to use screen abrasive or multihole paper.

They feature full shrouds and the exclusive AV vacuum system

6 in. (152 mm) TwoHANDTM Random Orbital Sander Table of General Specifications

Free Speed
RPM

* AIR Flow

Pad Dim.

Motor

Air Pressure

Height

Air Inlet
NPT

SCFM

(LPM)

Inch

(mm)

hp

(W)

PSI

(bar)

Inch

(mm)

12,000

21

(594)

6

(152)

0.46

(343)

90

6.2

4.43

(112.6)

1/4”



6 in. (152 mm) TwoHANDTM Random Orbital Sander, Low Profile Table of Specifications

Sander Type: Non-vacuum

Orbit

Model No

Pad Face

Length

Weight

Sound Lever
dBA

Inch

(mm)

Pound

(kg)

3/8 in. (10mm)

062500

6” Vinyl Face Pad

11.33

(287.7)

2.81

(1.27)

87

062502

6” Hook Face Pad

11.33

(287.7)

2.81

(1.27)

87

3/16 in. (5mm)

062300

6” Vinyl Face Pad

11.23

(285.2)

2.71

(1.23)

83

062302

6” Hook Face Pad

11.23

(285.2)

2.71

(1.23)

83

3/32 in. (2.5mm)

062100

6” Vinyl Face Pad

11.18

(284)

2.64

(1.21)

87

062102

6” Hook Face Pad

11.18

(284)

2.64

(1.21)

87

6 in. (152 mm) TwoHANDTM Random Orbital Sander, Low Profile Table of Specifications

Sander Type: Central-vacuum

Orbit

Model No

Pad Face

Length

Weight

Sound Lever
dBA

Inch

(mm)

Pound

(kg)

3/16 in. (5mm)

062331

6” Vinyl Face Pad

12.83

(325.8)

2.80

(1.27)

85

062333

6” Hook Face Pad

12.83

(325.8)

2.80

(1.27)

85

6 in. (152 mm) TwoHANDTM Random Orbital Sander, Low Profile Table of Specifications

Sander Type: Self-Generated Vacuum

Orbit

Model No

Pad Face

Length

Weight

Sound Lever
dBA

Inch

(mm)

Pound

(kg)

3/16 in. (5mm)

062361

6” Vinyl Face Pad

12.83

(325.8)

2.78

(1.26)

88

062363

6” Hook Face Pad

12.83

(325.8)

2.78

(1.26)

88
